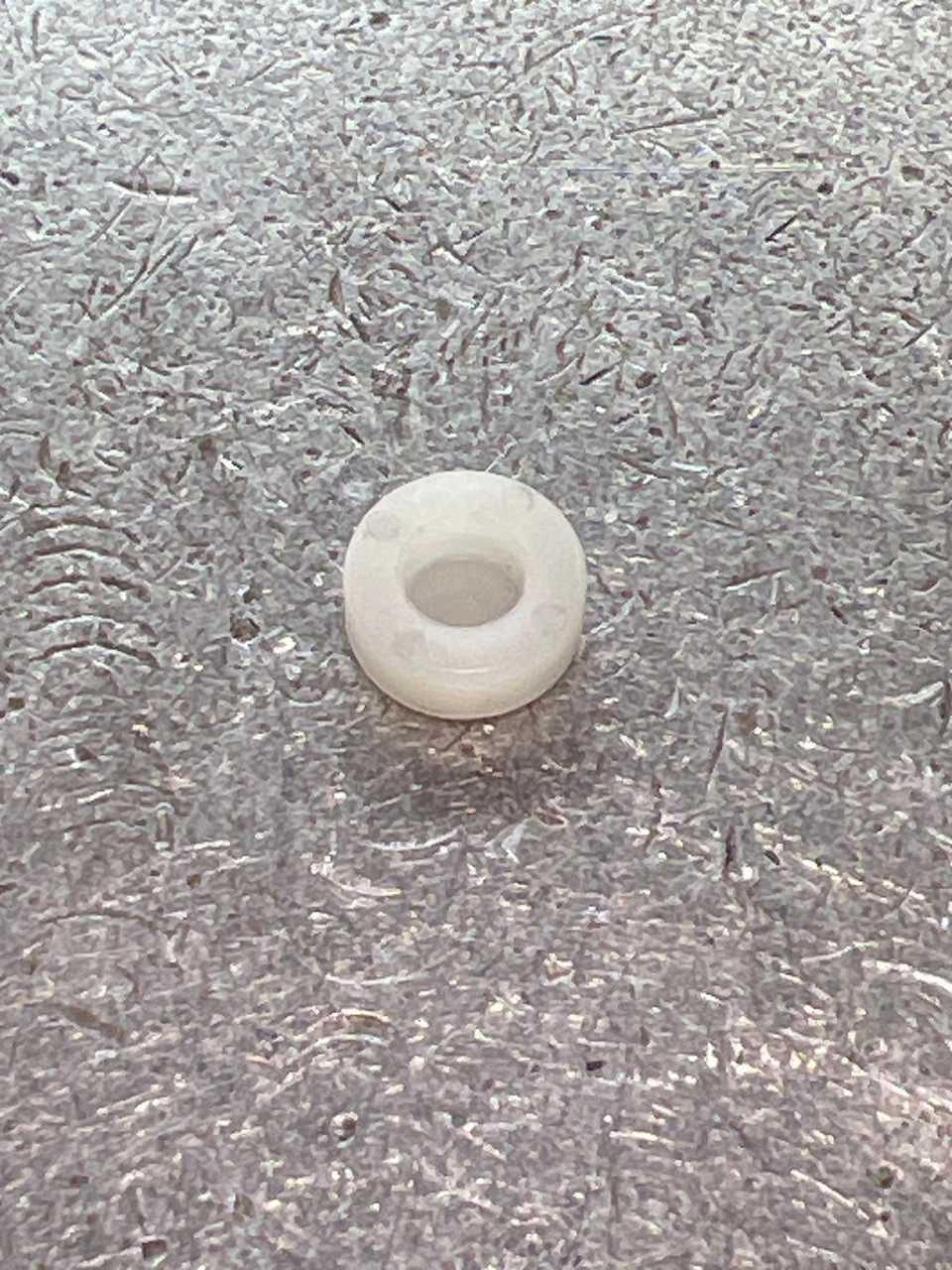

SHIMANO 1009C WORM BUSHING (REAR) (RD19976)

Stabilize Your Worm Shaft Oscillation

The Shimano 1009C Worm Bushing (Rear) is a genuine OEM synthetic bushing designed to support the rear end of the worm shaft (oscillating gear) in many modern Shimano spinning reels. Located at the bottom of the reel body (rear end), this bushing ensures the worm shaft rotates centrally and smoothly, facilitating the even "up and down" stroke of the spool.

While durable, this bushing can wear over time, leading to excessive play in the worm shaft. Symptoms of a worn rear bushing include a "knocking" sound during retrieval or uneven line lay on the spool. Replacing this part restores the tight tolerances required for precision oscillation.

Upgrade Tip: Many anglers choose to replace this bushing with a specific ball bearing to further reduce friction and improve winding sensitivity (check your reel's specific bearing size requirements, typically 3x6x2.5mm for this position on many 2500-4000 size reels).

Product Specifications

• Part Name: Worm Bushing (Rear)

• Manufacturer: Shimano

• Part Number (MPN): RD19976

• Schematic Location Code: 1009C

• Material: Synthetic Polymer / Plastic

• Installation Position: Rear/Bottom of the Worm Shaft (Oscillation System)

Compatible Models

This part fits a broad range of Shimano's "Core Solid" and "Light & Tough" series spinning reels, generally from the 2019 generation onwards.

• Shimano Stradic FL Series:

  • ST1000HGFL, ST2500HGFL, STC3000XGFL, ST4000XGFL, STC5000XGFL

• Shimano Vanford F Series:

  • VF2000SHGF, VF2500HGF, VFC3000HGF, VF4000XGF

  • (Note: Excludes Vanford 500 size)

• Shimano Twin Power Series:

  • Twin Power FD (All sizes)

  • Twin Power XD FA (C3000 - C5000)

• Shimano Ultegra FC:

  • ULT1000FC, ULT2500FC, ULT4000XGFC

• Shimano Sustain FJ:

  • SA2500HG FJ, SA4000XG FJ

• Shimano Cardiff XR:

  • Cardiff XR C2000S, C2000SHG

Installation & Reference

To ensure proper fitment, please verify the part number RD19976 or the schematic code 1009C against your reel's specific exploded diagram.

• Schematic Diagrams: For detailed PDF schematics and part location verification, please visit www.reelschematic.com.

• Alternate Part Number: 1009C

Installation Note: This bushing is held in place by a retainer screw and washer (often parts RD0647 and RD9909). Ensure these are not lost during disassembly. If upgrading to a bearing, you may require an additional washer to adjust the worm shaft play correctly.
